Configure Tortuga (UniCloud) Grid Engine

Complete all the procedures in this article including:

• Configure Tortuga and Grid Engine
• Install the Ocean Controller
• Create an Elastigroup
• Submit a Test Job

Configure Tortuga And Grid Engine

Step 1: Create Elastigroup Hardware Profile

Tortuga uses hardware profiles to manage node registration. For Elastigroup a remote hardware profile with permission to control the name-format will be created so that Spot can manage VMs.

> create-hardware-profile --name elastigroup
> update-hardware-profile --name elastigroup --location remote
> update-hardware-profile --name elastigroup --name-format "*"

Step 2: Create Elastigroup Software Profile

> create-software-profile --name execd-elastigroup --no-os-media-required
> set-profile-mapping --software-profile execd-elastigroup --hardware-profile elastigroup

Step 3: Associate Software Profile With UGE

> enable-component --software-profile execd-elastigroup --no-sync execd
> uge-cluster update default --add-execd-swprofile execd-elastigroup

Step 4: Auto Queue Registration Hostgroup

Create a Hostgroup

> qconf -ahgrp @elastigroup

Create a Queue

The first command will launch an editor with the queue name configured. Save this template.

> qconf -aq burst.q
> qconf -mattr queue hostlist "@elastigroup" burst.q

The second command will associate the @elastigroup hostgroup with the queue.

Step 5: Allow Auto-Registration For Queue

Finally, associate the hostgroup with the Tortuga software-profile:

> echo "@elastigroup" >$SGE_ROOT/$SGE_CELL/common/config.execd-elastigroup

Install the Ocean Controller

$ source $SGE_ROOT/default/common/settings.sh
$ curl -fsSL https://spotinst-public.s3.amazonaws.com/integrations/hpc/gridengine/controller/scripts/install.sh | \
SPOTINST_TOKEN=redacted \
SPOTINST_ACCOUNT=redacted \
SGE_CLUSTER_NAME="tortuga-uge-cluster" \
bash

Cluster Name

All clusters must be uniquely identified with a Spot Account. To do this set SGE_CLUSTER_NAME when installing the Ocean Controller. Retain this value, which will be used again when creating the Elastigroup.

Create an Elastigroup

When creating a Spot Elastigroup there are a few properties that must be set for nodes to register with Tortuga and the Grid Engine primary. The following are recommended settings that are compatible with most UGE installations.

Capacity

Min: 1 Target: [desired target] Max: [desired max]

Compute Image

Publisher: OpenLogic Offer: CentOS SKU: 7.5

Login

User Name: centos Authentication Type: SSH Public Key Public Key: [public key of root user on primary]

Required Tags

Tag	Description
installerHostName	Hostname of the primary [get-node-list]
installerIpAddress	IP Address of the primary [ifconfig -a]
cfmPassword	Password for the cfmUser. Can be found with: cat \$TORTUGA_ROOT/private/.cfmsecret

Optional Tags

Tag	Default	Description
port	8443	Port the primary is listening on
cfmUser	cfm	The admin user for UGE
dns_nameservers	installerIpAddress	Where the Tortuga DNS server is installed. Defaults to the value set for installerIpAddress.

User Data

#!/usr/bin/env python

import sys
import subprocess
import platform
import time
import shutil
import urllib2
import base64
import ssl
import json
import os
import signal

installerHostName = None
installerIpAddress = None
port = 8443
cfmUser = 'cfm'
cfmPassword = None
override_dns_domain = True
dns_search = ''
dns_domain = ''
dns_nameservers = []


def bootstrapFromMetadataTags():
  url = 'http://169.254.169.254/metadata/instance/compute/tags?api-version=2018-10-01&format=text'

  request = urllib2.Request(url, headers={"Metadata" : "true"})
  contents = urllib2.urlopen(request).read()

  tags = contents.split(";")

  for tag in tags:
    keyval = tag.split(":", 1)

    if keyval[0] == "installerHostName":
      global installerHostName
      installerHostName = keyval[1]
    elif keyval[0] == "installerIpAddress":
      global installerIpAddress
      installerIpAddress = keyval[1]
    elif keyval[0] == "port":
      global port
      port = keyval[1]
    elif keyval[0] == "cfmUser":
      global cfmUser
      cfmUser = keyval[1]
    elif keyval[0] == "cfmPassword":
      global cfmPassword
      cfmPassword = keyval[1]
    elif keyval[0] == "override_dns_domain":
      global override_dns_domain
      override_dns_domain = ast.literal_eval(keyval[1])
    elif keyval[0] == "dns_search":
      global dns_search
      dns_search = keyval[1]
    elif keyval[0] == "dns_domain":
      global dns_domain
      dns_domain = keyval[1]
    elif keyval[0] == "dns_nameservers":
      global dns_ary
      dns_ary = keyval[1].split(",")
      dns_ary.append(installerIpAddress)
      dns_nameservers = dns_ary

def runCommand(cmd, retries=1):
    for nRetry in range(retries):
        p = subprocess.Popen(cmd, shell=True)

        retval = p.wait()
        if retval == 0:
            break

        time.sleep(5 + 2 ** (nRetry * 0.75))
    else:
        return -1

    return retval


def _installPackage(pkgList, yumopts=None, retries=10):
    cmd = 'yum'

    if yumopts:
        cmd += ' ' + yumopts

    cmd += ' -y install %s' % (pkgList)

    retval = runCommand(cmd, retries)
    if retval != 0:
        raise Exception('Error installing package [%s]' % (pkgList))


def installEPEL(vers):
    epelbaseurl = ('http://dl.fedoraproject.org/pub/epel'
                   '/epel-release-latest-%s.noarch.rpm' % (vers))

    runCommand('rpm -ivh %s' % (epelbaseurl))


def _isPackageInstalled(pkgName):
    return (runCommand('rpm -q --quiet %s' % (pkgName)) == 0)


def installPuppet(vers):
    pkgname = 'puppetlabs-release-pc1'

    url = 'http://yum.puppetlabs.com/%s-el-%s.noarch.rpm' % (pkgname, vers)

    bRepoInstalled = _isPackageInstalled(pkgname)

    if not bRepoInstalled:
        retval = runCommand('rpm -ivh %s' % (url), 5)
        if retval != 0:
            sys.stderr.write(
                'Error: unable to install package \"{0}\"\n'.format(pkgname))

            sys.exit(1)

    # Attempt to install puppet
    if not _isPackageInstalled('puppet-agent'):
        _installPackage('puppet-agent')


def bootstrapPuppet():
    cmd = ('/opt/puppetlabs/bin/puppet agent'
           ' --logdest /tmp/puppet_bootstrap.log'
           ' --onetime --server %s --waitforcert 120' % (installerHostName))

    runCommand(cmd)


def get_default_dns_domain():
    results = installerHostName.rstrip().split('.', 1)

    return results[1] if len(results) == 2 else None


def update_resolv_conf():
    with open('/etc/resolv.conf', 'w') as fp:
        if dns_search:
            fp.write('search %s\n' % dns_search)

        fp.write('nameserver %s\n' % installerIpAddress)

def update_network_configuration():
    nameserver_found = False
    domain_found = False

    fn = '/etc/sysconfig/network-scripts/ifcfg-eth0'

    with open(fn) as fp:
        with open(fn + '.NEW', 'w') as fpOut:
            for buf in fp.readlines():
                if buf.startswith('PEERDNS='):
                    fpOut.write('PEERDNS=no\n')
                    continue
                elif buf.startswith('DNS1='):
                    nameserver_found = True
                    fpOut.write('DNS1={0}\n'.format(installerIpAddress))
                    continue
                elif buf.startswith('DOMAIN='):
                    domain_found = True
                    fpOut.write('DOMIAN={0}\n'.format(dns_search))
                    continue

                fpOut.write(buf)

            if not nameserver_found:
                fpOut.write('DNS1={0}\n'.format(installerIpAddress))

            if not domain_found:
                fpOut.write('DOMAIN={0}\n'.format(dns_search))

    shutil.move(fn, fn + '.orig')
    shutil.move(fn + '.NEW', fn)

def setHostName():
    url = 'https://%s:%s/v1/identify-node' % (installerIpAddress, port)

    req = urllib2.Request(url)

    req.add_header(
        'Authorization',
        'Basic ' + base64.standard_b64encode(
            '%s:%s' % (cfmUser, cfmPassword)))

    ctx = ssl.create_default_context()
    ctx.check_hostname = False
    ctx.verify_mode = ssl.CERT_NONE

    for nCount in range(300):
        try:
            response = urllib2.urlopen(req, context=ctx)
            break
        except urllib2.HTTPError as ex:
            if ex.code == 401:
                raise Exception(
                    'Invalid Tortuga webservice credentials')
        except:
            print("Registration error. Retrying...")

        time.sleep(5)
    else:
        raise Exception('Unable to communicate with Tortuga webservice')

    d = json.load(response)

    if response.code != 200:
        if 'error' in d:
            errmsg = 'Tortuga webservice error: msg=[%s]' % (
                error['message'])
        else:
            errmsg = 'Tortuga webservice internal error'

        raise Exception(errmsg)

    h = d['node']['name']

    runCommand('hostname %s' % h)

    with open('/etc/hostname', 'a') as fp:
        fp.write('%s\n' % h)

    return h


def main():
    runCommand('setenforce permissive')

    bootstrapFromMetadataTags()

    setHostName()

    update_resolv_conf()

    # update_network_configuration()


    vals = platform.dist()

    vers = vals[1].split('.')[0]

    # Install EPEL repository, if necessary
    if not _isPackageInstalled('epel-release'):
        installEPEL(vers)

    with open('/etc/hosts', 'a+') as fp:
        fp.write('%s\t%s\n' % (installerIpAddress, installerHostName))

    installPuppet(vers)

    update_resolv_conf()

    bootstrapPuppet()

if __name__ == "__main__":

    main()

Third-party Integration

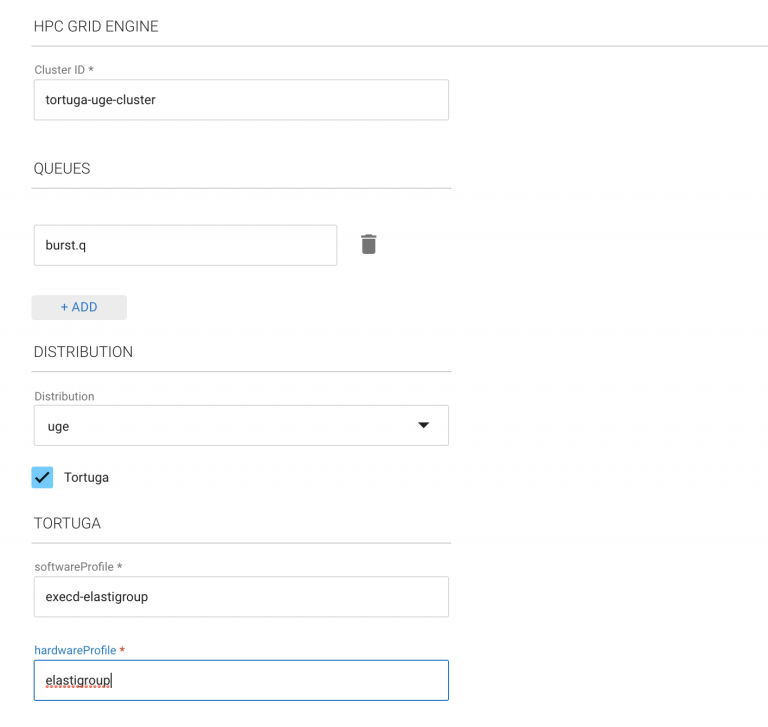

Add the HPC Grid Engine Integration:

Submit a Test Job

qsub -r yes -q burst.q $SGE_ROOT/examples/jobs/sleeper.sh 60
